Category: Electrical

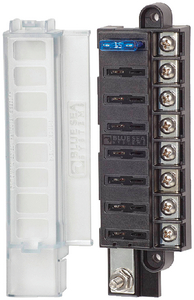

BLUE SEA SYSTEMS 5046-BSS FUSE BLOCK STBLADE 8CIRC W/CVR
Price: $74.09
Retail price is shown. * Add this item to the Shopping Cart to see your reduced price.
Product Description: Blue Sea Systems ST Blade Compact Fuse Block - Common Source, 8 Circuits Provides surface mount circuit protection for ATO®/ATC® Fuses in a compact footprint. The single side design allows wire entry from one side to maximize space.
Specifications:
- Compact common source fuse block
- Accepts ATO® and ATC® fast acting blade fuses
- Single side entry wiring
- Ignition Protected - for use in a gasoline engine compartment
- Insulating cover meets ABYC/USCG insulation requirements
- Tin-plated copper buses and fuse clips
- Accepts ring or snap fork type terminals
- Small format standard and custom labels available
- Fuses sold separately
Specifications:
- Voltage Max. Operating: 32V DC
- Amperage Max. Operating: 30A per circuit
- Amperage Max. Operating: 100A per block
- Fuse Type: ATO® or ATC® Fuses
- Screw Terminal: #8-32 Screws with captive star lock washer
- Mounting: #8 Screw (M4)
ALT Part Numbers: BLU 5046, 36-9170
Important Note for Boat, Engine and Generator Parts: The responsibility for the accuracy of your order rests with you, the customer. If you have any question as to whether or not the part you are ordering is the right one for your boat/engine/generator, please do not hesitate to call us immediately at 321-952-1303 Monday-Friday 8-5pm. This is important to save both time and money. Carp Coastal Marine will be responsible for any mistakes that we make. However, if you make the decision without consult from us, then restocking and freight charges will be added to your order.
Brand: Blue Sea Systems
SKU:661-5046
UPC:632085050467
Product Weight: 0.39 lbs. Product Width: 9" Product Depth: 2" Product Height: 3"
