Category: Electronics

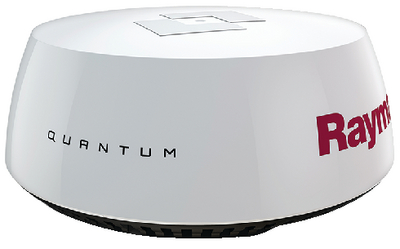

RAYMARINE E70210 QUANTUM Q24C 18" RADAR WITH

Price: $2,557.87
Not In Stock
May be available soon with price change.
Item may be special order or out of stock. Please call 321-952-1303 or Contact Us for price and availability.
Product Description: Raymarine E70210 Quantum™ Wireless CHIRP Radome w/Wi-Fi & Data w/Power Cable Quantum Radar is the world's first compact marine radar to use CHIRP pulse compression technology. Setting a new standard for solid state marine radar, Quantum delivers superior radar imaging on both long and extremely short ranges. Integrated Wi-Fi makes installation easy and Quantum's energy effcient and lightweight design provides safe radiated emissions and reduced power consumption.
  • Input Voltage: 12 or 24 Vdc (Min: 10.8V, Max: 31.2 V)
  • Networking: Wi-Fi or wired Ethernet (RayNet)
  • Antenna Type: Patch Array
  • Power Consumption: Transmit mode 17W; standby mode 7W; sleep mode 2W
  • Max. Range Scale: from 1/16 to 24 nautical miles
  • Transmit Frequency: 9354 to 9446 MHz
  • Peak Power Output: 20W
  • Duplexer: Circulator
  • Pulse Widths (3 dB): 40 ns to 14.7 ?s
  • CHIRP Lengths: 400 ns to 20 ?s
  • CHIRP Bandwidth: Up to 32 MHz
  • IF Bandwidth: 26 MHz
  • Noise: Less than 4 dB
  • Beamwidth (nominal): 4.9° horizontal and 20° vertical
  • Polarisation: Horizontal
  • Waterproofing: IPX6
ALT Part Numbers: RAY E70210, 40-4519
Important Note for Boat, Engine and Generator Parts: The responsibility for the accuracy of your order rests with you, the customer. If you have any question as to whether or not the part you are ordering is the right one for your boat/engine/generator, please do not hesitate to call us immediately at 321-952-1303 Monday-Friday 8-5pm. This is important to save both time and money. Carp Coastal Marine will be responsible for any mistakes that we make. However, if you make the decision without consult from us, then restocking and freight charges will be added to your order.

Brand: Raymarine

SKU:152-E70210

UPC:723193783931

Product Weight:  47 lbs. Product Width:  24" Product Depth:  13" Product Height:  24"
