Category: Electronics

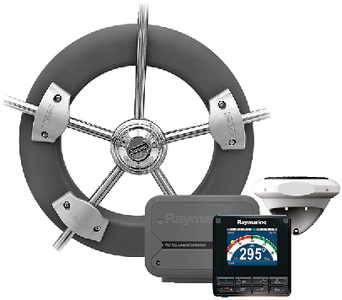

RAYMARINE T70152 EV100 WHEEL AUTOPILOT SAIL
Price: $1,898.30
Product Description: Raymarine EV-100 Cockpit Autopilot - Sail Pack Contains:
Designed for Evolution mechanical and hydraulic autopilot systems.
SeaTalkng networking enables a single cable connection for power and data to the Evolution ACU (actuator control unit) and extended SeaTalkng and NMEA2000 networks.
Specifically designed to complement Raymarines unique wheel-drive and tiller-drive applications, the ACU-100 provides a powerful and secure interface between steering systems and the revolutionary EV-1 course computer and 9-axis sensor. Fully sealed so may be mounted above decks on boats where space is limited.
The p70 / p70s autopilot control head is a push-button operation controller designed primarily for sailboats. Advanced LED backlighting offers low power consumption and delivers vibrant colour and contrast. Wide horizontal and vertical viewing angles ensure the display can be seen clearly from acute positions. The p70 / p70s control head features the LightHouse user interface and a start up wizard to help you configure the pilot quickly and easily.
The EV-100 wheel pilot comprises a fully enclosed wheel-drive for simple installation and superb autopilot performance. Quick and easy installation, Fits most types of wheel, Simple robust clutch engagement mechanism.
Specifications: Maximum recommended laden boat displacement: 7,500kg (16,500lbs), Revs per minute (rpm): 9, Thrust: 30Nm, Connections: STng (x1), NMEA 2000 with adapter cable
ng Power Cable (0.4m)
1 x SeaTalkng Backbone Cable (5m)
1 x SeaTalkng Spur Cable (0.4m)
1 x SeaTalkng 5-way Connector Block
2 x SeaTalkng T-piece Connector
2 x SeaTalkng Terminator
- EV1 Sensor Core
Designed for Evolution mechanical and hydraulic autopilot systems.
SeaTalkng networking enables a single cable connection for power and data to the Evolution ACU (actuator control unit) and extended SeaTalkng and NMEA2000 networks.
- Actuator Control Unit-100
Specifically designed to complement Raymarines unique wheel-drive and tiller-drive applications, the ACU-100 provides a powerful and secure interface between steering systems and the revolutionary EV-1 course computer and 9-axis sensor. Fully sealed so may be mounted above decks on boats where space is limited.
- p70 / p70s Autopilot Control Head (Sail)
The p70 / p70s autopilot control head is a push-button operation controller designed primarily for sailboats. Advanced LED backlighting offers low power consumption and delivers vibrant colour and contrast. Wide horizontal and vertical viewing angles ensure the display can be seen clearly from acute positions. The p70 / p70s control head features the LightHouse user interface and a start up wizard to help you configure the pilot quickly and easily.
- Wheel Drive
The EV-100 wheel pilot comprises a fully enclosed wheel-drive for simple installation and superb autopilot performance. Quick and easy installation, Fits most types of wheel, Simple robust clutch engagement mechanism.
Specifications: Maximum recommended laden boat displacement: 7,500kg (16,500lbs), Revs per minute (rpm): 9, Thrust: 30Nm, Connections: STng (x1), NMEA 2000 with adapter cable
- Evolution Cabling Kit - Contains:
ng Power Cable (0.4m)
1 x SeaTalkng Backbone Cable (5m)
1 x SeaTalkng Spur Cable (0.4m)
1 x SeaTalkng 5-way Connector Block
2 x SeaTalkng T-piece Connector
2 x SeaTalkng Terminator
ALT Part Numbers: RAY T70152, 38-0265
Important Note for Boat, Engine and Generator Parts: The responsibility for the accuracy of your order rests with you, the customer. If you have any question as to whether or not the part you are ordering is the right one for your boat/engine/generator, please do not hesitate to call us immediately at 321-952-1303 Monday-Friday 8-5pm. This is important to save both time and money. Carp Coastal Marine will be responsible for any mistakes that we make. However, if you make the decision without consult from us, then restocking and freight charges will be added to your order.
Brand: Raymarine
SKU:152-T70152
UPC:723193770733
Product Weight: 23 lbs. Product Width: 22" Product Depth: 10" Product Height: 22"
